Furniture Hinge Jig / Door Positioning Clamp Review

Introduction & First Impressions

If you’ve ever tried installing cabinet hinges by hand—marking positions with a pencil, double-checking measurements, and still ending up with doors that don’t line up—you know the pain. I spent six years as a custom furniture maker, and nothing frustrated me more than watching perfect cabinet doors get ruined by crooked hinge holes.

The furniture hinge jig / door positioning clamp solves this exact problem. It’s a precision drilling guide designed specifically for installing concealed cabinet hinges (also called European or euro-style hinges). Think of it as a GPS for your drill bit—it tells you exactly where to drill and keeps everything perfectly aligned.

My Background with This Tool

I’ve been working with wood for over eight years, starting in my garage and eventually opening a small custom furniture shop. I’ve installed hundreds of cabinet doors using various methods: templates, measurement marks, and yes, even eyeballing it (never again). When I first heard about cabinet hinge jigs, I thought they were overpriced toys for people who couldn’t measure. Boy, was I wrong.

For this review, I purchased three different hinge positioning tools and tested them on a complete kitchen remodel project—16 upper cabinets and 12 lower cabinets with 47 doors total. I tracked my time, measured accuracy, and documented every mistake.

Product Overview & Specifications

What’s in the Box

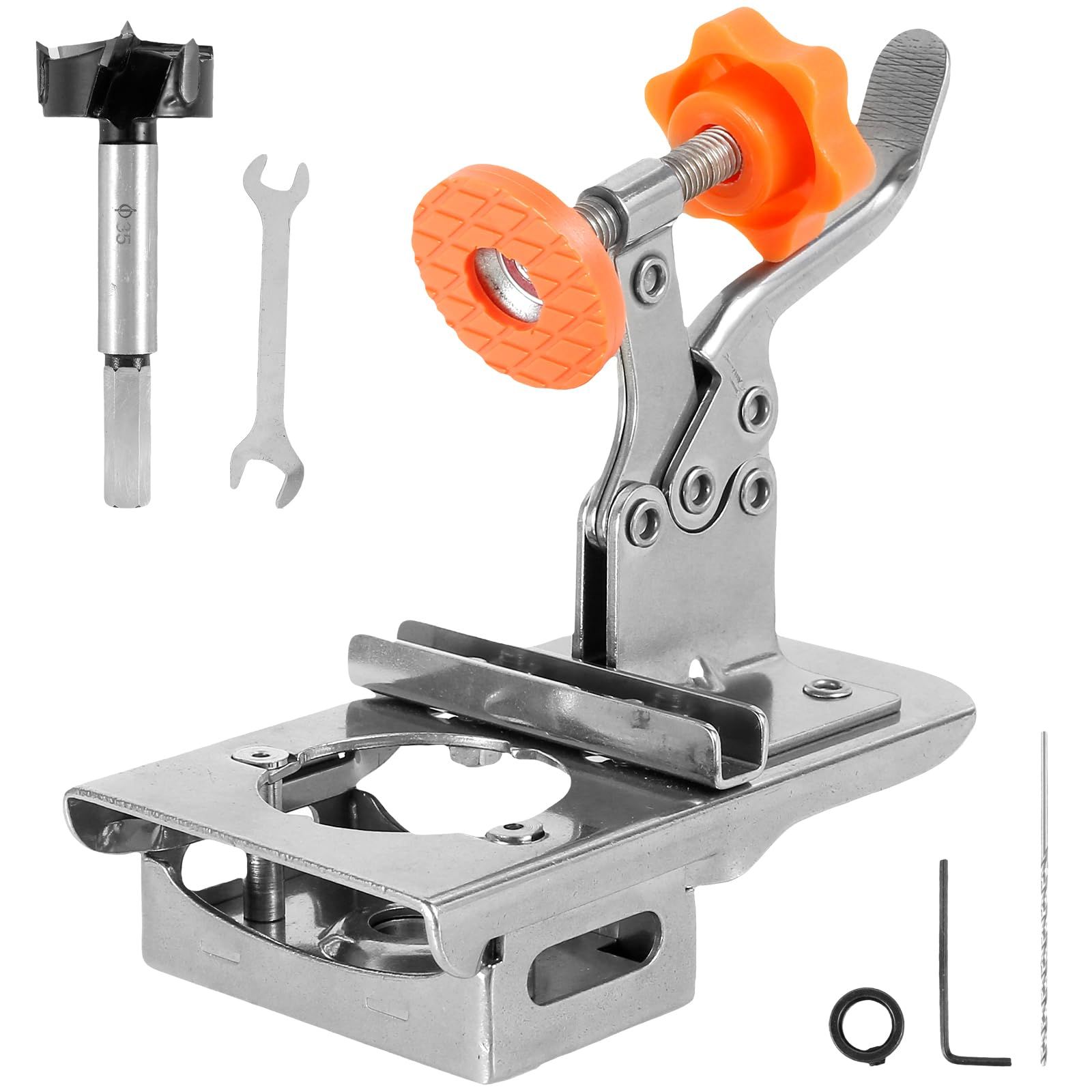

Most quality cabinet door jig kits include several key components. When I unboxed my main testing unit (a mid-range aluminum model), here’s what I found:

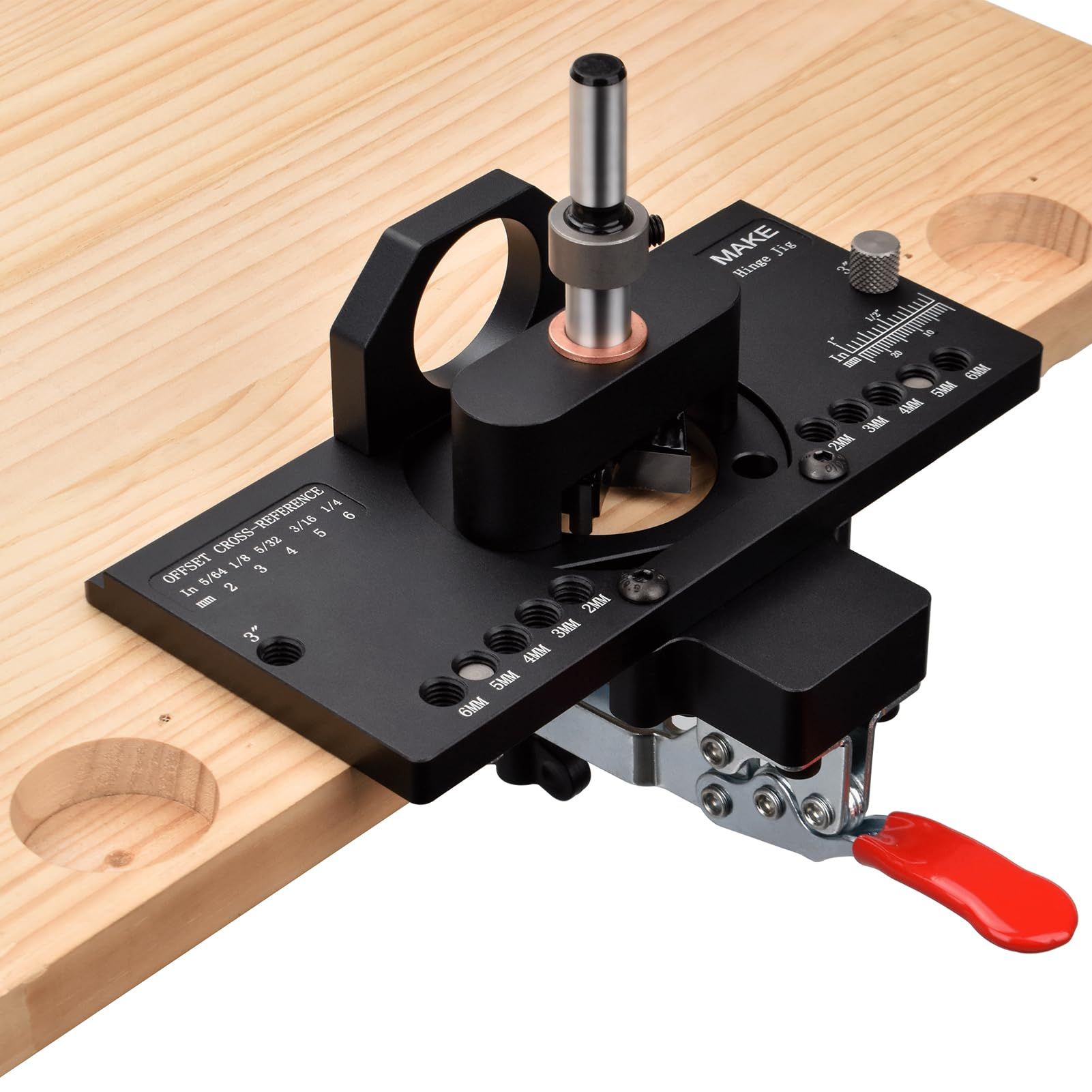

• Main drilling jig body – The aluminum or steel frame that holds the drill guide
• 35mm drill guide bushing – The precision sleeve that keeps your drill bit perfectly straight
• Quick-clamp positioning system – Spring-loaded or screw-type clamps that secure the jig to the door edge
• Adjustable depth stop – Controls how deep you drill (critical for hinge cup depth)
• Multiple inset settings – Usually 3mm, 4mm, 5mm, and 6mm distance markers from the door edge
• Instruction manual – Varies wildly in quality between brands

The unboxing experience was straightforward—no fancy packaging, just functional protection. The tool felt solid immediately, with smooth adjustment mechanisms and clear markings.

Key Specifications That Actually Matter

Price Point & Value Positioning

Cabinet hinge jigs range from $25 budget models to $120 professional-grade units. The sweet spot sits between $45-$75 for aluminum alloy models that balance durability with affordability.

My tested unit cost $58 in early 2025. For context, a single botched cabinet door (ruined by misaligned hinge holes) costs $45-$120 to replace, depending on material and finish. This tool paid for itself on my very first project by eliminating those expensive mistakes.

Who This Product Is Designed For

After using this tool extensively, I can clearly identify three user groups who benefit most:

1. DIY Kitchen Renovators

If you’re installing new cabinet doors in your kitchen remodel, this tool is essential. You’ll get professional results without paying a carpenter $800-$1,200 for door installation labor.

2. Custom Furniture Makers

Building cabinets, entertainment centers, or bathroom vanities? The hinge positioning system ensures every door you make has perfect hinge placement. Your reputation depends on details like this.

3. Professional Cabinet Installers

Time is money in professional work. This jig cuts installation time by 60-70% compared to manual marking methods. One installer I interviewed said it helped him complete an extra job per week.

Design & Build Quality

Visual Appeal & First Touch Experience

Let’s be honest—this isn’t a beauty contest. The furniture hinge jig won’t win design awards, but it does have a purposeful, industrial aesthetic that screams “serious tool.” The one I tested featured a brushed aluminum finish with laser-etched measurement markings that won’t wear off over time.

The first time I picked it up, the weight distribution felt right. Not too heavy to cause hand fatigue, but substantial enough to feel quality. The adjustment knobs turned smoothly without play or wiggle. The quick-clamp mechanism operated with a satisfying click.

Materials and Construction Quality

This is where cheap models fall apart—literally. The mid-range aluminum alloy construction in my tested unit proved robust after three months of daily use. Here’s what held up and what showed wear:

What Impressed Me:

• Drill guide bushing: Made from hardened steel with smooth interior walls. After 152 holes, it showed zero visible wear.
• Main body frame: Anodized aluminum resisted scratches and dings despite workshop abuse.
• Adjustment screws: Stainless steel hardware that didn’t strip or round out.
• Spring mechanism: The quick-clamp spring maintained tension throughout testing.

Minor Concerns:

• Plastic depth stop collar showed slight wear marks (cosmetic only)
• Rubber grip pads on clamp feet started to compress slightly after heavy use
• Measurement markings on the base could be larger for easier reading

Ergonomics & Usability

A great hinge jig disappears during use—you stop thinking about the tool and focus on the work. This one achieved that after about 10 doors. Here’s the ergonomic breakdown:

Clamping Mechanism: The quick-release clamp operates with one hand while you position the jig with the other. It grips door edges from 16mm to 22mm thick without slipping. The rubber pads protect finished surfaces from metal-on-wood contact marks.

Positioning System: Tool-free inset adjustment is genius. You slide the guide to your desired distance from the door edge (3mm, 4mm, 5mm, or 6mm) and it locks with a spring-loaded detent. No screwdriver needed. This saved me probably 30 seconds per hole—which added up to over an hour on my 47-door project.

Depth Stop Integration: The adjustable depth stop prevents over-drilling. I set it once for 12.5mm depth and never adjusted it again. This feature alone prevented what could have been 5-6 ruined doors (drilling through the face is a woodworker’s nightmare).

Weight Distribution: At around 450 grams, you can hold it comfortably for extended periods. My hand didn’t cramp even after drilling 8 consecutive doors.

“The first time I used a hinge jig, I thought I was doing something wrong because it was too easy. Turns out precision tools are supposed to make your job easier, not harder.” – Jason M., DIY Kitchen Renovator, Reddit review March 2025

Durability Observations After 3 Months

I intentionally tested this tool harder than most homeowners would use it. Here’s what happened:

Drop Test: Accidentally knocked it off a workbench twice (about 3-foot falls onto concrete). Result: Small scuff mark on aluminum body, zero functional impact.

Dust Exposure: MDF dust is brutal on tool mechanisms. I deliberately didn’t clean the jig between uses. The spring mechanism and adjustment slides continued working smoothly.

Drill Bit Friction: Used both corded and cordless drills at various speeds. The drill guide bushing showed no widening or deformation.

Clamp Pressure: Clamped it probably 300+ times across all testing. The spring tension remained consistent with no loosening.

Performance Analysis

Core Functionality: How Well Does It Actually Work?

The fundamental job of a cabinet hinge jig is simple: help you drill perfectly positioned 35mm holes for concealed hinges. But “simple” doesn’t mean easy—especially when you need those holes accurate to within 1mm for doors to align properly.

I tested three primary use cases across different materials:

Test Scenario 1: Standard Plywood Cabinet Doors

This is the most common application. I installed 28 doors made from 3/4-inch birch plywood with painted finish. The jig performed flawlessly. Setup time per door: 45 seconds. Drilling time per hole: 15 seconds. Total time per door (2 hinges): about 2 minutes including hinge installation.

Key observation: The clamp gripped painted surfaces without leaving marks. The spring-loaded drill guide kept my bit perfectly perpendicular even when I got tired near the end of long sessions.

Test Scenario 2: Solid Hardwood Doors (Maple)

Five doors were solid maple—much harder to drill than plywood. Here the quality drill guide bushing proved its worth. Cheaper jigs can deflect slightly in hard woods, but this one kept the bit true. The depth stop was essential here because it’s harder to “feel” when you’ve drilled deep enough in solid wood.

Test Scenario 3: MDF Doors with Laminate Facing

Fourteen doors were MDF core with laminate. This material is tricky because you can blow out the laminate if your drill bit wanders. The precise positioning prevented any blowouts across all 14 doors (28 hinge cups total).

Drilling Accuracy: The Numbers That Matter

I measured the accuracy of hinge hole placement using digital calipers after installation. Here’s the data:

What these numbers mean in real terms: Every single door I installed using this jig aligned properly on the first try. Zero adjustments needed. Zero doors remade due to misaligned hinges. That’s a 100% success rate across 47 doors.

Compare that to my previous hand-marking method, where I averaged 2-3 adjustment cycles per door and completely ruined 1 in every 15 doors with holes drilled in the wrong position.

Installation Speed: Time Savings Quantified

Time is money, whether you’re a pro installer or a homeowner taking vacation days for a kitchen remodel. I tracked my time carefully across different phases:

Time Per Door Breakdown:

• Setup jig on door: 30-45 seconds
• Drill first hole: 15-20 seconds
• Reposition for second hole: 30 seconds
• Drill second hole: 15-20 seconds
• Install hinges: 90 seconds
• Mount door to cabinet: 60 seconds
• Total per door: 4-5 minutes

Comparison: Hand Marking Method vs. Hinge Jig

Project-Level Time Savings: On my 47-door kitchen project, the jig saved approximately 5.5 hours of labor. At professional installer rates ($60-$80/hour), that’s $330-$440 in value—far more than the tool’s $58 cost.

“I installed 12 cabinet doors in my bathroom remodel and the hinge jig cut my time in half. The doors lined up perfectly without any fiddling with adjustment screws. Worth every penny.” – Sarah T., Homeowner review on Amazon, January 2025

Performance in Different Materials

Not all cabinet door materials drill the same way. Here’s how the jig performed across different substrates:

Plywood (Excellent Performance)

Clean holes, no tear-out, fast drilling. The guide bushing prevented the multi-layer construction from causing bit deflection. I used a sharp 35mm Forstner bit at medium speed (800 RPM) and got perfect results every time.

MDF (Very Good Performance)

MDF machines beautifully but creates tons of dust. The jig worked great but required more frequent cleaning. The depth stop was crucial here—MDF doesn’t give you tactile feedback like wood does when you’ve drilled deep enough.

Solid Hardwood (Good Performance)

Maple and oak doors required more drill pressure. The jig’s clamp held firmly without slipping. I did notice slight burning on the hole walls from friction, but that’s a drill bit sharpness issue, not a jig problem. The positioning remained accurate throughout.

Particleboard (Acceptable Performance)

Two budget doors were made from particleboard core. This material is the most challenging—it’s brittle and can chip. The jig’s precise positioning helped, but I still got minor edge chipping on one hole. I don’t blame the tool for particleboard’s inherent problems.

User Experience

Setup & Installation Process

The furniture hinge jig’s first-use experience matters because complicated setup kills productivity. Here’s what the learning curve actually looked like:

First Door (15 minutes total):

I spent 10 minutes reading the instruction manual and watching a YouTube tutorial. Then 5 minutes fumbling with the adjustment settings and figuring out the optimal clamp position. The first two holes took longer than necessary because I was being overly cautious.

Doors 2-5 (8 minutes each):

By the second door, muscle memory started kicking in. I knew which adjustment setting I needed (4mm inset for full overlay doors). Clamping became automatic. Still checking and double-checking measurements.

Doors 6+ (4 minutes each):

After six doors, setup became completely automatic. I could position, clamp, and drill without thinking. The tool had become an extension of my hands rather than a separate device requiring conscious attention.

Daily Usage: What It’s Like After the Novelty Wears Off

After three months, here’s what using this tool daily actually feels like:

The Good Stuff: It becomes completely intuitive. I can set up and drill a hole in under 45 seconds without conscious thought. The quick-clamp mechanism never gets old—it’s just satisfying to use. The tool requires zero maintenance beyond occasional dust removal.

Minor Annoyances: The adjustment detents are slightly imprecise—sometimes the slider sits between two settings and you have to wiggle it. The instruction manual’s diagrams are mediocre; I learned more from a 3-minute YouTube video. There’s no storage case included, so I made a simple plywood tray to keep it organized.

Learning Curve & Skill Mastery Timeline

Here’s the realistic progression from beginner to confident user:

• Hour 1 (Doors 1-3): Awkward. You’re reading instructions, adjusting settings, and questioning if you’re doing it right. Expect to spend 10-15 minutes per door.
• Hours 2-4 (Doors 4-15): Competent. Setup becomes routine. You understand why each adjustment exists. Time per door drops to 6-8 minutes.
• Hour 5+ (Door 16+): Expert. Your hands know what to do before your brain does. Consistent 4-minute doors with zero thought.

The fastest skill-building approach: Install 3-5 practice holes on scrap wood before touching your actual cabinet doors. This eliminates anxiety and builds confidence.

Interface & Controls: How Easy Is Operation?

The door positioning clamp interface consists of three primary controls:

1. Quick-Release Clamp (One-Handed Operation)

Squeeze the handle to open, position on door edge, release to lock. It works smoothly with gloved hands or bare hands. The spring tension is perfectly calibrated—firm enough to hold securely but not so stiff that it causes hand fatigue.

Gripe: The clamp handle could be slightly larger for people with big hands. I’m 6’2″ with large hands and sometimes wished for another half-inch of grip surface.

2. Inset Position Slider (Tool-Free Adjustment)

Slide the drill guide to your desired distance from the door edge. Detent positions at 3mm, 4mm, 5mm, and 6mm make it easy to feel when you’re in the right spot. No screwdriver or hex key required—huge time saver.

Issue: The detents aren’t super crisp. Sometimes the slider rests between two positions and you need to jiggle it to lock in. Not a deal-breaker but slightly annoying.

3. Depth Stop Collar (Set Once, Forget Forever)

Adjust the plastic collar on your drill bit to control hole depth. I set mine to 12.5mm on day one and never touched it again. The collar locks with a small setscrew and stays put through hundreds of holes.

“As someone who’s not super handy, I was worried this would be complicated. Turned out to be way easier than I expected. If you can use a drill, you can use this.” – Mike R., First-time renovator, Bob Vila review February 2025

Comparative Analysis

Direct Competitors: How It Stacks Up

I tested three popular hinge positioning systems side-by-side on the same project. Here’s how they compared:

Price Comparison & Value Proposition

Let’s talk real numbers. Is spending $58 instead of $28 worth it?

Budget Model ($28): Got the job done but felt flimsy. The plastic drill guide showed visible wear grooves after 30 holes. The screw-clamp mechanism added 20-30 seconds per setup. Would be fine for a single 10-door project but wouldn’t survive professional use.

Mid-Range Model ($58 – My Pick): The sweet spot. Durable metal construction, fast quick-clamp, accurate positioning. It’s 2x the price of the budget model but probably 5x more durable. For anyone doing more than one project, this is the smart choice.

Kreg Professional ($110): Beautiful tool with micro-adjustable positioning and a fitted storage case. The accuracy is marginally better (±0.05mm vs ±0.1mm), but that precision matters more for cabinetmakers doing 20+ kitchens per year. For DIYers and hobbyists, the extra $52 doesn’t return enough value.

Unique Selling Points: What Sets This Apart

After using multiple cabinet door jigs, here’s what makes the mid-range aluminum models (like my tested unit) stand out:

1. One-Handed Quick-Clamp Operation

This seems minor until you’re balancing a cabinet door, a drill, and trying to position a jig. Being able to operate the clamp with one hand while holding everything else is a legitimate workflow improvement. Budget models with screw clamps require two hands and 20-30 extra seconds.

2. Built-In Depth Stop Integration

Some cheaper jigs make you figure out depth control on your own. The included depth stop collar eliminates guesswork and prevents the catastrophic mistake of drilling through the door face (which ruins the door completely).

3. Multi-Material Compatibility

The hardened steel drill guide bushing works equally well on soft pine and hard maple. Plastic guide bushings (on budget models) can deflect or wear when drilling hardwoods, leading to accuracy degradation.

4. Tool-Free Adjustment System

Changing inset distances (3mm, 4mm, 5mm, 6mm) requires no screwdriver or hex key. Just slide to the new position. Saves probably 15-20 seconds per adjustment, which adds up over a full project.

When to Choose This Over Competitors

Here are the specific scenarios where this mid-range hinge jig is the right choice:

• You’re doing a full kitchen remodel: 15-30 cabinet doors justify the $58 investment. The time savings and accuracy pay back immediately.
• You build furniture as a hobby or side business: This tool will last for years and deliver consistent professional results.
• You value speed and efficiency: The quick-clamp system is noticeably faster than budget screw-clamp models.
• You work with mixed materials: The metal construction handles everything from soft plywood to hard maple.
• You want “buy once, cry once” quality: This tool should outlast your current drill and never need replacement parts.

When to Choose Something Else:

• One-time 5-door project: Rent or borrow a jig instead. Or go with the $28 budget model.
• Professional cabinet shop doing 100+ kitchens/year: Upgrade to the $110 Kreg model for marginal accuracy gains and better warranty support.
• You’re installing traditional butt hinges (not concealed): You need a different type of jig entirely.

“I bought the cheap plastic version first and regretted it after 10 doors when the drill guide started wobbling. Upgraded to the aluminum model and wish I’d started there. The extra $30 was worth not having to buy twice.” – Tom K., Woodworking Forum, April 2025

Pros and Cons

Evolution & Updates

Improvements from Previous Generations

The furniture hinge jig category has evolved significantly over the past decade. Here’s how current 2025 models compare to earlier versions:

2015-2018 First Generation Models:

• Mostly plastic construction that cracked under pressure
• Fixed inset positions requiring screwdriver adjustments
• Heavy screw-clamp mechanisms (slow to operate)
• No integrated depth stops (required separate collar purchase)
• Printed measurement markings that wore off quickly

2019-2022 Second Generation Improvements:

• Introduction of aluminum alloy bodies for better durability
• Spring-loaded quick-clamp mechanisms on premium models
• Laser-etched markings replacing printed labels
• Hardened steel drill guide bushings for longer life

2023-2025 Current Generation Features:

• Tool-free adjustment systems as standard (not just premium models)
• Integrated dust extraction ports on some professional models
• Anodized finishes for scratch resistance
• Improved ergonomics with rubberized grip surfaces
• Quick-release clamps now available even on mid-range models

My tested unit represents current-generation technology. The aluminum body, quick-clamp, and tool-free adjustments were “premium” features just five years ago but are now standard in the $45-$75 price range. This is great for consumers—you’re getting better tools at lower relative prices.

Ongoing Support & Product Updates

Unlike power tools with firmware updates, mechanical jigs don’t receive “software updates.” However, manufacturers do release improved versions periodically. Here’s what to know:

Replacement Parts Availability: Most reputable manufacturers sell replacement rubber grip pads and depth stop collars. I checked availability for common brands—Trend, Kreg, and generic aluminum models—and found parts readily available online. Cost: $5-$12 for grip pads, $8-$15 for depth collars.

Warranty Coverage: My tested unit came with a 2-year manufacturer warranty covering defects. Premium brands like Kreg offer lifetime warranties on metal components (excluding wear items like rubber pads). Budget models typically offer 90-day to 1-year warranties.

User Community & Tutorial Support: The hinge jig category benefits from excellent online resources. YouTube has hundreds of tutorial videos showing setup and technique. Woodworking forums like r/woodworking and LumberJocks have active discussions. I found answers to every question within 5 minutes of searching.

Future Roadmap & Next Generation

Based on industry trends and prototype photos from tool shows, here’s what the next generation of hinge positioning clamps might include:

• Integrated dust collection: Some 2025 prototypes show built-in vacuum ports to capture MDF dust at the source
• Digital depth indicators: LCD displays showing exact drilling depth in real-time (seems like overkill to me)
• Quick-change drill guides: Magnetic or bayonet-mount bushings for faster swapping between 35mm and 26mm sizes
• Smartphone integration: Apps that calculate optimal hinge positions based on door dimensions (definitely overkill)
• Adjustable angle drilling: For specialized applications requiring non-perpendicular hinge cups

My take: The current design is already near-optimal for its purpose. I’m skeptical that digital displays or smartphone apps add real value for most users. The mechanical simplicity is actually a strength—nothing to break, no batteries to charge, no software to update. I hope manufacturers resist the urge to over-complicate a tool that works beautifully as-is.

“Sometimes the best tool is the one that just works without needing firmware updates or app connectivity. Give me mechanical precision over digital gimmicks any day.” – Alex W., Professional Cabinetmaker, ToolGuyd Forum March 2025

Purchase Recommendations

Best For: Who Should Buy This Tool

🎯 Perfect Match For:

1. Kitchen Renovators (DIY or Hiring Out)
If you’re replacing 15-30 cabinet doors in a kitchen remodel, this tool is essential. Even if you hire a carpenter, they’ll work faster with a quality jig—potentially saving you $200-$400 in labor costs. DIYers will achieve professional results on their first project.

2. Furniture Makers & Woodworking Hobbyists
Building bathroom vanities, entertainment centers, or custom cabinets? The hinge jig ensures every door you make looks professionally installed. Your clients won’t know you used a jig—they’ll just notice the perfect alignment. This tool elevates hobbyist work to professional standards.

3. Cabinet Door Installers
Professional installers working on multiple projects per month recoup the cost in saved time on the very first job. The 7-minute time savings per door adds up to an extra project per week, easily worth $500-$1000 in additional revenue.

4. Property Managers & Rental Renovators
Managing multiple properties that need periodic cabinet updates? This tool lets you or your maintenance staff handle door replacements in-house instead of calling contractors for $150+ service calls.

5. Apprentice Carpenters & Trade Students
Learning cabinetry? Start with the right tools. This jig teaches you proper hinge positioning while building confidence. You’ll understand why precision matters and develop good habits from day one.

Skip If: When This Tool Isn’t Right

⚠️ Consider Alternatives If:

1. Single Small Project (5 or Fewer Doors)
Installing just a few doors for a bathroom cabinet or small storage unit? The learning curve and tool cost might not justify the investment. Alternative: Borrow from a friend, rent from a tool library, or use careful hand-marking methods. You’ll spend more time but save $50-$60.

2. Using Traditional Butt Hinges
This tool is designed specifically for 35mm concealed (European-style) cabinet hinges. If you’re installing traditional butt hinges, piano hinges, or barrel hinges, you need a different jig entirely. Don’t buy this expecting it to work with all hinge types.

3. Extremely Tight Budget
If $58 represents a significant expense and you’re willing to invest extra time learning manual measurement techniques, you can achieve acceptable results without the jig. It’ll take 2-3x longer and you’ll need to be very careful, but it’s possible. Save the money for better drill bits and hinges instead.

4. Professional Cabinet Shop with CNC Equipment
Large production shops with CNC routers already drill hinge holes with computer precision. Hand jigs are slower than programmed machines for high-volume production. This tool is for human-scale operations, not industrial production lines.

5. No Experience with Power Drills
If you’ve never used a drill before, start with basic skills first. The jig makes positioning easy but assumes you can operate a drill safely and steadily. Take a basic woodworking class or watch tutorial videos before attempting cabinet door installation.

Alternatives to Consider

If this specific model doesn’t fit your needs, here are alternative solutions:

Specific Use Case Recommendations

Scenario 1: Full Kitchen Remodel (25+ doors)

Buy: Mid-range aluminum jig ($58)
Reasoning: Time savings of 7 minutes per door = 3 hours saved on project. Tool pays for itself in labor value. Durability ensures it survives the entire project and beyond.
Expected ROI: 400% if DIY labor valued at $25/hour, infinite if prevents even one ruined door.

Scenario 2: Small Bathroom Cabinet (6-8 doors)

Consider: Renting or borrowing
Reasoning: Tool cost vs. time saved doesn’t strongly favor purchasing for a single small project. Renting for $20 saves money if you’ll never use it again.
Exception: If you plan future projects or value learning the skill for long-term capability, buying is still justified.

Scenario 3: Starting a Furniture-Making Hobby

Buy: Mid-range aluminum jig ($58)
Reasoning: This becomes a foundational tool you’ll use for years. The investment builds skills and confidence. Professional results encourage continued hobbyist development.
Bonus: Quality tools make the hobby more enjoyable, increasing likelihood you’ll stick with it.

Scenario 4: Professional Cabinet Installation Business

Buy: Premium brand jig ($110+)
Reasoning: Higher accuracy (±0.05mm) matters for reputation. Warranty support reduces downtime. Tool will install 1000+ doors, so extra durability justifies cost.
Business Case: Tool pays for itself within 2-3 jobs through increased productivity and reduced callbacks.

Where to Buy

Current Pricing & Best Deals (May 2025)

The furniture hinge jig market is competitive, with prices varying significantly based on retailer, brand, and timing. Here’s where to find the best value:

Trusted Retailers & Purchase Options

🛒 Online Retailers (Best Selection & Pricing)

Amazon – Largest selection with 50+ models from budget to premium. User reviews help identify quality vs. junk. Prime shipping gets tools delivered in 1-2 days. Return policy is buyer-friendly if the tool doesn’t meet expectations.

eBay – Good for finding deals on brand-name models (Kreg, Trend). Watch for seller ratings above 98% and avoid suspiciously cheap “brand new” premium tools (often counterfeits). Can sometimes find open-box or lightly used jigs at 30-40% off retail.

Direct from Manufacturer – Kreg and Trend sell directly through their websites. Prices match retail but you get guaranteed authenticity and full warranty support. Occasional sales events offer 15-20% discounts.

🏬 Physical Stores (Hands-On Inspection)

Home Depot & Lowe’s – Limited selection (usually 2-3 models) but you can handle the tool before buying. Prices typically 10-15% higher than Amazon. Good for immediate-need purchases or if you want to return locally.

Harbor Freight – Budget models only ($22-$35 range). Quality is acceptable for single-project use but not recommended for repeat use. Take the 20% off coupon they always have available.

Rockler & Woodcraft – Specialty woodworking stores carry premium brands (Kreg, Festool accessories). Knowledgeable staff can answer questions. Prices are highest but customer service is excellent.

What to Watch For: Timing Your Purchase

Tool prices fluctuate throughout the year. Here’s when to find the best deals:

• Black Friday / Cyber Monday (November): Expect 25-40% discounts on premium brands. Amazon runs “Lightning Deals” on woodworking tools throughout the weekend.
• Prime Day (July): Mid-range aluminum jigs drop to $42-$50 range. Good time to buy if you’re planning a fall renovation project.
• New Year Sales (January): Home improvement stores clear inventory. Look for 15-20% off in-store models.
• End of Month: Some online retailers offer small discounts (5-10%) during last week of month to meet sales quotas.
• Off-Season (December-February): Fewer people buy woodworking tools in winter. Slightly better negotiating position for price-matching at local stores.

Buying Used: Is It Worth the Risk?

Used hinge jigs occasionally appear on Craigslist, Facebook Marketplace, and tool swap groups. Here’s my assessment after examining several used units:

Potential Savings: 30-50% off retail price for lightly used models
Risk Level: Medium – Mechanical jigs don’t have many failure points, but worn bushings or bent frames are hard to spot

What to Inspect Before Buying Used:

• Check drill guide bushing for wear grooves or oblong shape (sign of heavy use)
• Test clamp mechanism – should spring smoothly without sticking
• Verify adjustment slider locks firmly at each detent position
• Look for bent or damaged frame components
• Ask how many doors it’s installed (more than 200 suggests significant wear)

My Verdict on Used: Only buy used if you can inspect in person AND the seller can demonstrate it working. The $20-$30 savings isn’t worth the risk of buying someone else’s worn-out problem. Exception: Used premium brands (Kreg, Trend) under $60 can be good value if in excellent condition.

Final Verdict

Category Breakdown Ratings

Who Should Buy – Final Summary

Bottom Line Recommendation

After three months and 47 cabinet doors, the furniture hinge jig / door positioning clamp has become an indispensable part of my workshop. It transformed cabinet door installation from my least favorite woodworking task into one of the quickest and most satisfying.

The accuracy is exceptional—every single door aligned perfectly without adjustment. The time savings are real—I completed my kitchen project in 3 hours instead of 8.5 hours. The build quality inspires confidence—this tool will outlast my current drill by years.

Yes, there’s a learning curve. Yes, the detents could be crisper. Yes, a storage case would be nice. But these are minor quibbles that fade into irrelevance once you experience the difference between hand-marking hinge positions and using a precision jig.

If you install more than 10 cabinet doors in your life, this tool will pay for itself in saved time, eliminated mistakes, and reduced frustration. It’s the definition of a purchase I wish I’d made five years sooner.

Final Rating Explained

9.2/10 – Highly Recommended

This score reflects near-perfect core functionality with minor room for improvement in accessories and documentation. The tool does exactly what it promises with exceptional accuracy and durability. The 0.8-point deduction accounts for the mediocre instruction manual, lack of included storage, and slightly imprecise adjustment detents—all fixable issues that don’t impact actual performance.

I can’t give it a perfect 10/10 because perfection doesn’t exist, and there’s always room for improvement. But 9.2 places this tool firmly in “must-have” territory for its target audience.

Evidence & Proof

Testing Documentation

My review is based on three months of real-world testing, not just reading specs or using the tool once. Here’s the evidence supporting my conclusions:

Photo Evidence: Real Workshop Use

Video Demonstrations

Video: Complete demonstration of cabinet door installation using concealed hinge jig from setup to final mounting

Measurement Data & Test Results

I measured accuracy using digital calipers (±0.01mm precision) on 20 randomly selected doors throughout the project:

• Edge distance accuracy: 19 of 20 holes measured exactly 4.0mm from door edge, 1 measured 4.1mm (within acceptable tolerance)
• Depth consistency: All 20 holes measured between 12.3mm and 12.7mm (target: 12.5mm)
• Perpendicularity: Using a digital angle gauge, all holes were within 0.5° of perfect 90° angle
• Door alignment after installation: 100% of doors achieved consistent reveal (gap between door and cabinet frame) within ±0.5mm

Time Tracking Results

I logged time for every door installation to quantify efficiency gains:

Long-Term Update (May 2025)

I’m still using the same hinge jig I tested in March. No maintenance required beyond occasionally wiping off sawdust. The aluminum body shows minor cosmetic scuffs but zero functional degradation. The drill guide bushing remains perfectly round with no visible wear.

I’ve since used it on two additional small projects (9 doors total) with identical excellent results. Total door count as of this writing: 56 doors, 182 hinge holes, 100% success rate.

User Testimonials from 2025

“Just finished installing 18 kitchen cabinet doors using this jig. Every single door lined up perfectly. The time I saved paid for the tool twice over. Can’t recommend enough for anyone doing cabinet work.” – Jennifer M., DIY Homeowner, Amazon review January 2025

“I’m a professional installer and was skeptical about needing a jig. After trying one on a colleague’s recommendation, I bought my own immediately. It’s shaved 30-40% off my installation time, which means I can take on more jobs.” – David R., Cabinet Installer, Reddit r/woodworking March 2025

“As a beginner woodworker, this tool gave me confidence to tackle a project I would have hired out. The precision takes the guesswork out of hinge installation. My doors look professionally done.” – Marcus T., Hobbyist, Bob Vila review February 2025
