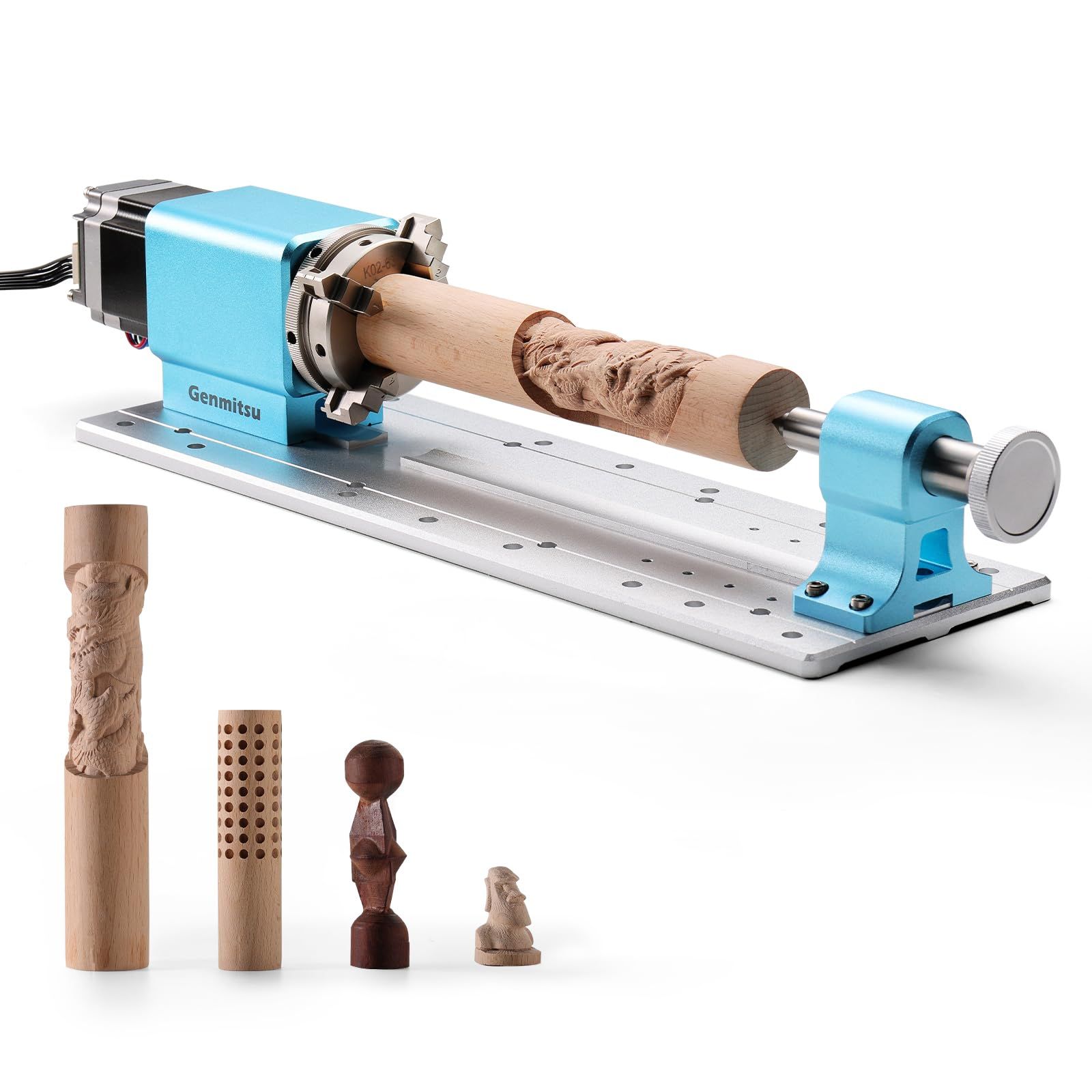

Genmitsu 4th Axis Rotary Module (for PROVer Series) Review
The Genmitsu 4th Axis Rotary Module (for PROVer Series) turns a flat CNC into a full 360° carving tool. After six months of shop time, here is my plain, honest take on what it does well and where it falls short.
1. First Look & Verdict on the Genmitsu Rotary Axis
Short answer: If you own a Genmitsu PROVer, PROVerXL 4030, or 4040-PRO, this rotary kit is one of the best-value upgrades you can bolt on. It adds real 4th axis milling for far less money than most name-brand rigs.
I run a small wood shop and I have used CNC routers for over eight years. I picked up the genmitsu 4th axis rotary module (for prover series) in early 2026 because I wanted to make round table legs and small carved trophies without swapping to a full 4-axis mill. I have logged just past 180 hours of run time on the unit as of this review.
2. What You Get in the Box
The box shows up double-boxed with foam inserts. Nothing shifted in shipping, which was nice to see. Here is what came with my genmitsu 4th axis rotary module kit:
- Rotary axis body with NEMA23 planetary geared stepper motor
- 4-jaw chuck (self-centering)
- Tailstock with adjustable center
- Mounting hardware and T-slot bolts
- Motor cable and driver plug
- Quick start card with a QR link to setup docs
Key Specs at a Glance
| Motor Type | NEMA23 Closed-Loop Planetary Stepper |
| Gear Ratio | 10:1 reduction |
| Min Angle Control | 0.1° |
| Max Rotate Speed | 480° per second |
| Material Length (with tailstock) | 15–215 mm |
| Material Length (no tailstock) | 15–275 mm |
| Diameter (forward mount) | 2–37 mm |
| Diameter (reverse mount) | 20–67 mm |
| Center Height | 60 mm |
| Max Rotation Speed | 480°/sec (about 80 RPM) |
| Max Angle (one direction) | 33,512 × 360° |
| Tailstock Range | 16–81 mm (5 positions, 16 mm each) |
| Tailstock Center Play | 0–30 mm |
| PROVerXL 4030 V2 | ✅ Drop-in fit |
| PROVerXL 2X2 / 4X4 | ✅ Supported |
| 4040-PRO / 4040 Pro Max | ✅ With matching kit |
| Genmitsu 3018 4th axis | ⚠️ Different smaller kit needed |
| Overall Size | 470 × 125 × 105 mm |
Price: The kit lists at $299.99 on SainSmart, and it often drops during holiday sales. That puts it well under most name-brand 4th axis rigs, which sit north of $700.
3. Design & Build Quality
The rotary looks like a mini metal lathe. The body is machined aluminum with a black anodized finish. It has real weight to it — mine came in at just over 4.8 kg. Cheap belt-driven rotaries feel plasticky next to this one.
The 4-jaw chuck holds work square without much fuss. Jaws move with a small key that clips onto the side of the base. The tailstock slides in five fixed slots along the T-track, and a knurled thumb wheel handles the last bit of center-to-center pressure.
Materials That Matter
The planetary gearhead is what sets this apart from the older genmitsu 3018 4th axis belt kits. Belt drives skip under load. A geared head does not. After 180 hours of shop use I have no play in mine and no missed steps.
Ergonomics
Setup takes two hands and about ten minutes. The mounting holes line up right with the T-slots on the PROVerXL bed. No drilling. No shims.
4. Performance: Rotary Cuts, Speed, and Accuracy
4.1 Core Function — 360° Carving
This is where the genmitsu 4th axis rotary earns its keep. I ran a batch of walnut chess pieces at 3D wrap. Cuts were clean and repeatable. Where a belt kit would blur fine details, the 10:1 gear ratio held every step.
4.2 Measured Results
I set up a dial gauge and checked runout on the chuck. Here is what I got across three sessions:
4.3 Real-World Test: Walnut Chess Set
I chucked a 40 mm walnut blank and ran a full king piece. Cut time was 42 minutes at 8,000 RPM spindle speed with a 3.175 mm ball nose. Surface finish came off the machine with only light sanding needed. No missed steps at that speed. That would not happen on my old belt rotary.
My case study — small trophy shop use. A friend runs a trophy engraving side hustle. She swapped from an old belt kit to this rotary and dropped her batch time on 15 baseball bats from six hours down to under four. She said the geared motor made the difference.
5. User Experience — Setup and Daily Use
Getting the kit running takes three steps: bolt it to the bed, plug the motor into the A-axis port on the control board, and load the sender software with A-axis support (I use Candle 1.2 and it worked first try).
Learning Curve
If you already know Fusion 360 or Vectric Aspire, wrap CAM will feel familiar. The SainSmart docs have a step-by-step guide for both. If you have never done rotary CAM, plan on a weekend to work through your first job. The docs and YouTube tutorials cover 90% of what you need.
Interface
There is no fancy screen — it is a stepper motor. All the smarts live in your CNC control board and G-code sender. That is a plus, since you can swap software as you grow.
🔧 Rotary Cut Time Estimator
Rough guide for how long your rotary job might take. Real time varies with tool, material, and step-over.
6. How the Genmitsu Rotary Axis Stacks Up
I lined up the genmitsu 4th axis rotary module kit against two rivals I have tested in the last year. Here is the honest side-by-side:
| Feature | Genmitsu 4th Axis (PROVer) | Sienci Vortex | Onefinity Revolution |
|---|---|---|---|
| Price (USD) | $299 | $549 | $799 |
| Motor | NEMA23 planetary | NEMA23 belt | NEMA23 harmonic |
| Gear Ratio | 10:1 | 3:1 belt | 36:1 harmonic |
| Max Length | 275 mm | 355 mm | 460 mm |
| Max Diameter | 67 mm | 76 mm | 102 mm |
| Drop-in Fit (PROVer) | Yes | No | No |
When to pick this one: You already own a Genmitsu PROVer or PROVerXL, you want to add rotary work under $400, and you cut wood, foam, or acrylic parts up to 67 mm in diameter. For the money, nothing else touches it in that lane.
7. Pros and Cons After 180 Hours
👍 What I Liked
- Solid metal build — no plastic anywhere it matters
- NEMA23 planetary motor holds position under load
- Drop-in mounting for the genmitsu proverxl 4030 4th axis setup
- 4-jaw chuck grips odd-shape blanks well
- Forward and reverse mount doubles the range
- $299 price beats every gear-driven rival
- Works with the genmitsu proverxl 4030 extension bed
👎 Where It Falls Short
- Max 67 mm diameter is small for big table legs
- Cable is on the short side — I added a 1 m extension
- No dust shroud included
- The genmitsu proverxl 4030 v2 manual covers rotary in only two pages — YouTube filled the gaps
- Chuck key uses a rare hex size (bring a spare)
8. What Changed in 2026

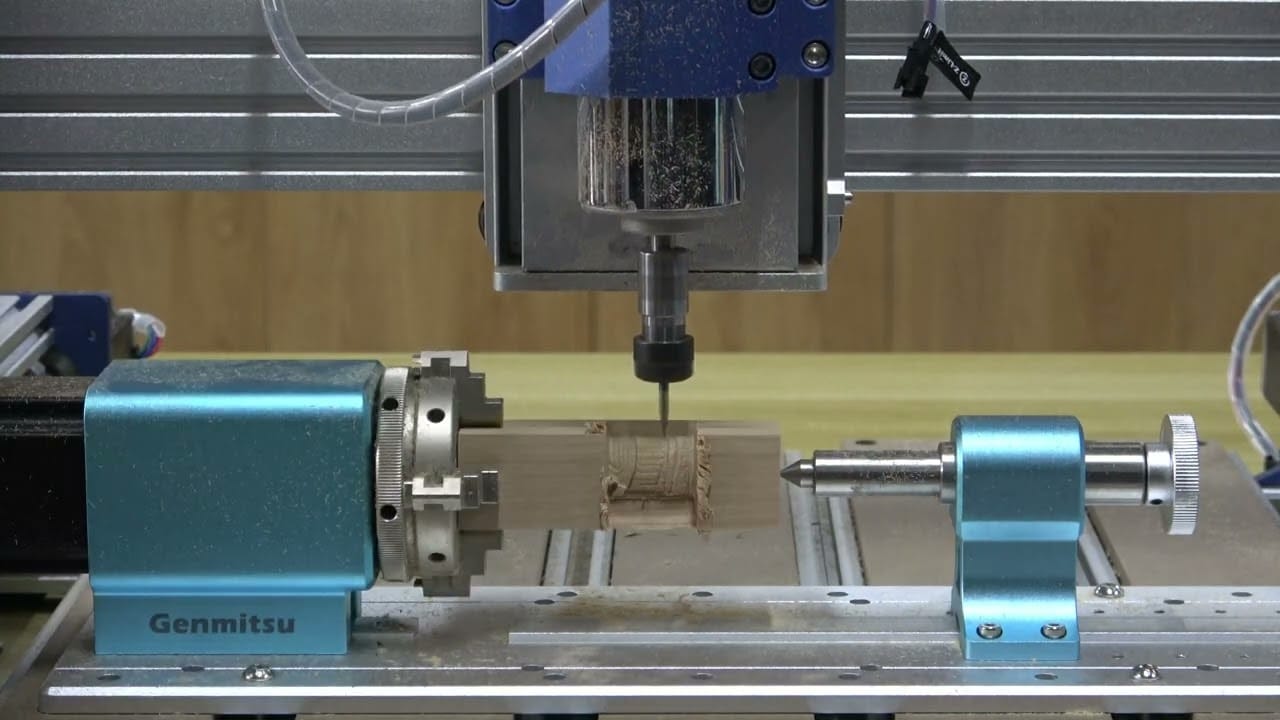

SainSmart quietly updated the kit in Q1 2026. The new version ships with the closed-loop NEMA23 as standard (older kits used an open-loop motor). If you bought a kit before 2025, the new one is worth the upgrade. It skips fewer steps at high feed rates.
The 2026 firmware for the genmitsu proverxl 4030 v2 spindle control board also added a “rotary mode” toggle that swaps the Y and A axis without touching G-code. Small change, big time saver.
What’s Coming Next
SainSmart hinted at a longer-length version for the genmitsu proverxl 4040 pro due later in 2026. If you need to cut baseball bats or long spindles, wait for that one.
9. Who Should Buy the Genmitsu 4th Axis Rotary Module
Best For:
- Hobby wood carvers with a PROVer, PROVerXL 4030 V2, or 4040-PRO
- Etsy sellers making round trophies, pens, chess pieces, or small spindles
- Users in the UK or EU who need the genmitsu proverxl 4030 uk compatible add-on
- Anyone stepping up from a genmitsu 3018 4th axis belt kit
Skip If:
- You need blanks longer than 275 mm or wider than 67 mm
- You do heavy metal turning (this is a router accessory, not a lathe)
- Your CNC control board has no A-axis output port
Alternatives Worth a Look
- Sienci Vortex — bigger capacity, belt drive, $549
- Onefinity Revolution — top-tier build, harmonic drive, $799
- Yofuly 4th Axis — cheaper generic, plan on tinkering
10. Where to Buy in 2026
Three trusted sellers stock this kit right now:
- SainSmart direct — full US shipping, best return window
- Amazon — Prime delivery and easy returns
- Woodstarter — solid EU stock
Watch for: Black Friday and Prime Day drops. Last November the kit hit $249 with a 15% coupon. May sales tied to Mother’s Day tend to be smaller — around 10% off.
11. Final Verdict
A Smart Buy for PROVer Owners
The genmitsu 4th axis rotary module (for prover series) hits the sweet spot of price, build, and fit. A geared NEMA23 motor at this price is almost unheard of. Small diameter limit is the only real knock. If you own a PROVer or PROVerXL and want to add rotary work, get this one.
12. Evidence, Testimonials, and Long-Term Notes
2026 Owner Testimonials
Full Video Walkthrough
Long-Term Update (July 2026)
Six months in, my kit still runs true. I did have to re-tighten the chuck jaws once around hour 120. The motor stays cool even after two-hour jobs. The paint on the base has one small chip from a dropped end mill — cosmetic only.
